ESPECIFICACIONES:​


PROCESSOR

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors

CHIPSET

Intel H510 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

EXPANSION SLOT

• 1x PCIe x16 slot (From CPU)
  • Support up to PCIe 4.0 for 11th Gen Intel CPU
  • Support up to PCIe 3.0 for 10th Gen Intel CPU
• 1x PCIe 3.0 x1 slot (From PCH)
• 1x M.2 slot with E key for WiFi (PCIe) module only(M2_2)

ONBOARD GRAPHICS

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
• 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz

1.  Available only on processors featuring integrated graphics.
2.  Graphics specifications may vary depending on the CPU installed.

STORAGE

• 4x SATA 6Gb/s ports (From H510 Chipset)
• 1x M.2 slot (Key M)
  • M2_1 slot (From H510 Chipset)
    • Supports up to PCIe 3.0 x4
    • Supports SATA 6Gb/s¹
    • Supports 2242/ 2260/ 2280 storage devices

1.  SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB

Intel H510 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)

AUDIO

Realtek ALC892/ ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Intel I219V 1Gbps LAN controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector

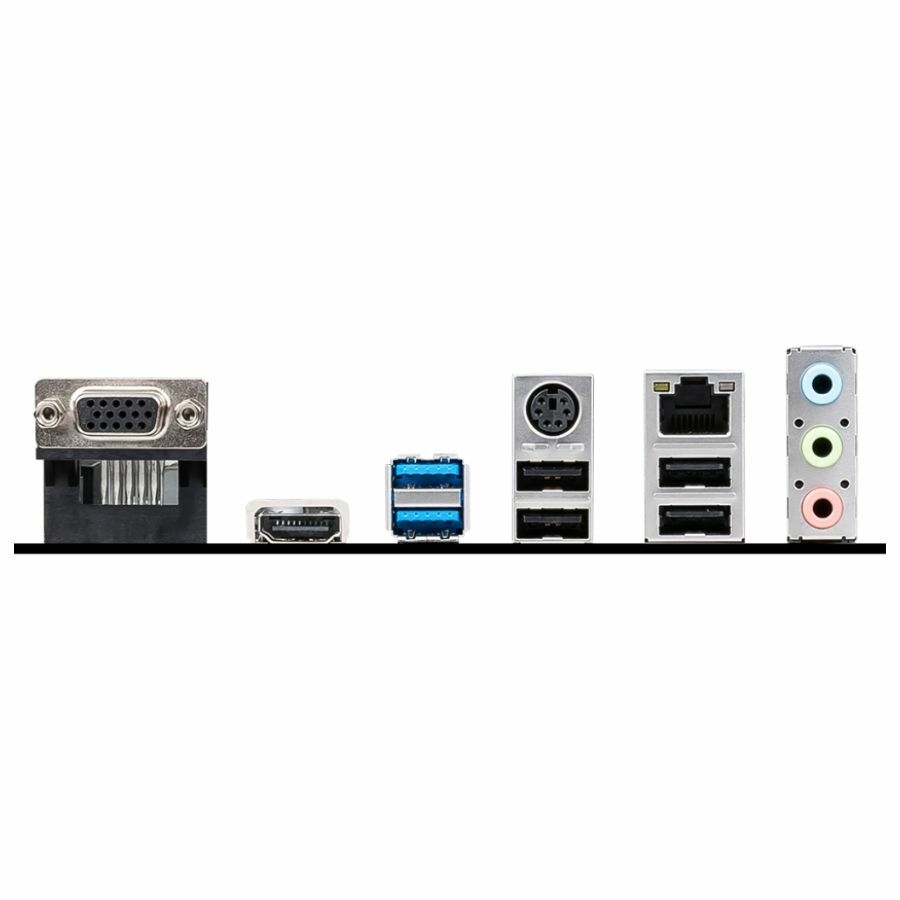

BACK PANEL PORTS

1. HDMI
2. VGA
3. Mouse / Keyboard
4. LAN port
5. Audio connector
6. USB 2.0
7. USB 3.2 Gen 1 5Gbps Type-A
8. USB 2.0

DIMENSIONS

• mATX Form Factor
• 9.29 x 7.95 in. (23.6 cm x 20.2 cm)

MOUNTING

6 mounting holes

OPERATING SYSTEM

Support for Windows 10 64-bit

WEB DEL FABRICANTE: https://www.gigabyte.com/ar/Motherboard/H510M-H-rev-10#kf
