ESPECIFICACIONES:


• Procesador

LGA1200 package:

1. 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
2. 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
   * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
3. L3 cache varies with CPU


• Chipset
  1. Intel Z590 Express Chipset

• Memoria

  1. 11th Generation Intel Core i9/i7/i5 processors:
     Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. 10th Generation Intel Core i9/i7 processors:
     Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel Core i5/i3 /Pentium/Celeron processors:
     Support for DDR4 2666/2400/2133 MHz memory modules
  4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules

• Gráficos Integrados

Integrated Graphics Processor-Intel HD Graphics support:

1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version and HDCP 2.3.

• Audio
  1. Realtek ALC1220-VB codec
     * The back panel line out jack supports DSD audio
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
• Wireless Communication module

Intel Wi-Fi 6 AX201:

1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.1
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.

• Puertos de Expansión
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
*Supported by 11th Generation processors only.


2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 1 x PCI Express x1 slot
   (PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

• Tecnología Multi-Gráficos
  1. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
• Interfaz de Almacenamiento

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*

Chipset:

2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)
3. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
4. 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready

• USB

Chipset:

1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
2. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
3. 2 x USB 3.2 Gen2 Type-A ports (red) on the back panel
4. 5 x USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hub:

5. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Conectores Internos de E/S
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 3 x system fan headers
  7. 1 x system fan/water cooling pump header
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 6 x SATA 6Gb/s connectors
  11. 3 x M.2 Socket 3 connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C header, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen1 header
  16. 2 x USB 2.0/1.1 headers
  17. 2 x Thunderbolt add-in card connectors
  18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
  19. 1 x Clear CMOS jumper
  20. 1 x Q-Flash Plus button

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

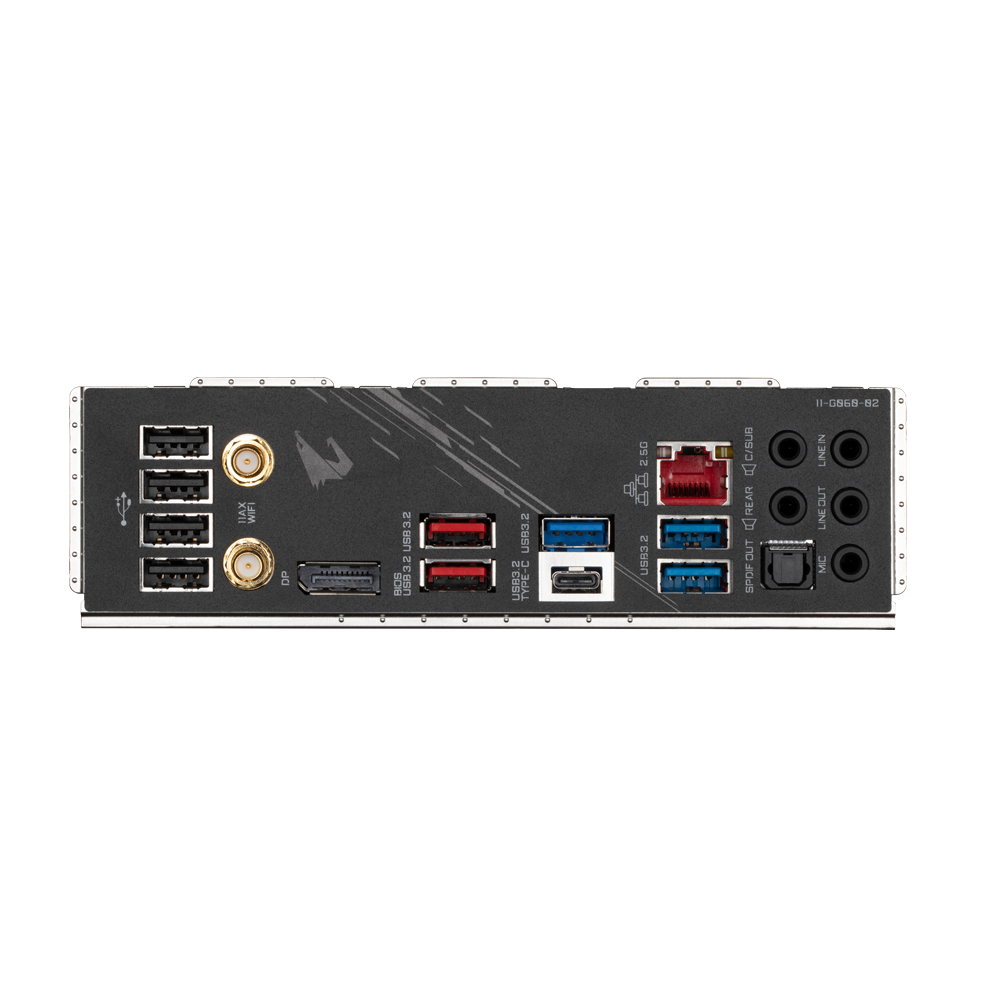

• Conectores del Panel Trasero
  1. 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red)
  3. 3 x USB 3.2 Gen 1 ports
  4. 4 x USB 2.0/1.1 ports
  5. 2 x SMA antenna connectors (2T2R)
  6. 1 x DisplayPort
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
• Controlador de E/S
  1. iTE I/O Controller Chip
• Monitorización H/W
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Características Únicas
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
• Sistema Operativo
  1. Support for Windows 10 64-bit
• Diseño
  1. ATX Form Factor; 30.5cm x 24.4cm
