ESPECIFICACIONES:


• Procesador

LGA1200 package:

1. 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
2. 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
   * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
3. L3 cache varies with CPU

• Chipset
  1. Intel Z590 Express Chipset
• Memoria
  1. 11th Generation Intel Core i9/i7/i5 processors:
     Support for DDR4 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) /4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
  2. 10th Generation Intel Core i9/i7 processors:
     Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel Core i5/i3 /Pentium/Celeron processors:
     Support for DDR4 2666/2400/2133 MHz memory modules
  4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules
• Gráficos Integrados

Integrated Graphics Processor-Intel HD Graphics support:

1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version and HDCP 2.3

• Audio
  1. Realtek ALC4080 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
• Wireless Communication module

Intel Wi-Fi 6 AX200

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.1
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.

• Puertos de Expansión
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
     * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
     * The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
*Supported by 11th Generation processors only.


2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
   (PCIEX4_1 and PCIEX4_2 slots conform to PCI Express 3.0 standard.)

• Tecnología Multi-Gráficos
  1. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
• Interfaz de Almacenamiento

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) *
2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU)

*Supported by 11th Generation processors only.

Chipset:

3. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
4. 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready

• USB

Chipset:

1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
2. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
3. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4. 2 x USB 3.2 Gen 1 ports available through the internal USB header)

Chipset+USB 3.2 Gen1 Hubs:

5. 4 x USB 3.2 Gen1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

6. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Conectores Internos de E/S
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 4 x system fan headers
  7. 2 x system fan/water cooling pump headers
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 6 x SATA 6Gb/s connectors
  11. 4 x M.2 Socket 3 connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C header, with USB 3.2 Gen2 support
  15. 1 x USB 3.2 Gen1 header
  16. 2 x USB 2.0/1.1 headers
  17. 2 x Thunderbolt add-in card connectors
  18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  19. 1 x Clear CMOS jumper
  20. 2 x temperature sensor headers
  21. 1 x Q-Flash Plus button

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

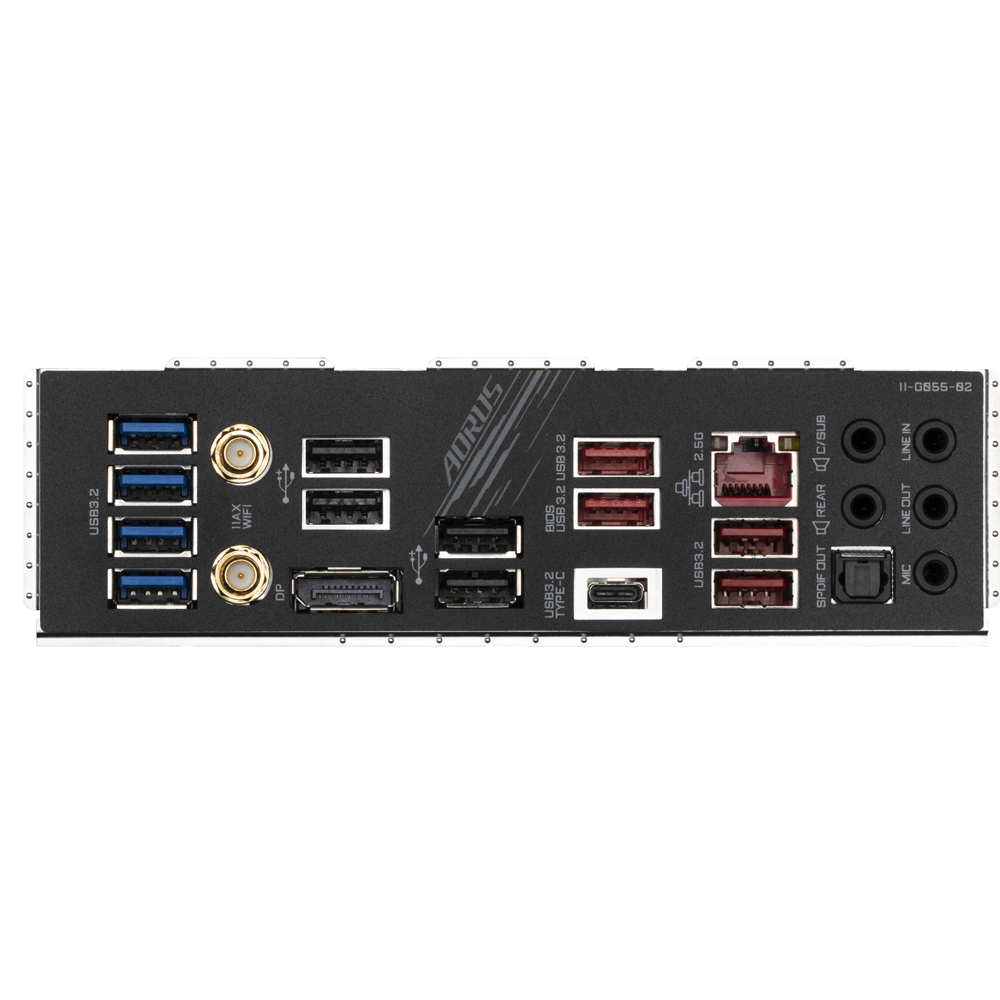

• Conectores del Panel Trasero
  1. 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
  2. 4 x USB 3.2 Gen 2 Type-A ports (red)
  3. 4 x USB 3.2 Gen 1 ports
  4. 4 x USB 2.0/1.1 ports
  5. 2 x SMA antenna connectors (2T2R)
  6. 1 x DisplayPort
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
• Controlador de E/S
  1. iTE I/O Controller Chip
• Monitorización H/W
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Características Únicas
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
• Sistema Operativo
  1. Support for Windows 10 64-bit
• Diseño
  1. ATX Form Factor; 30.5cm x 24.4cm

WEB DEL FABRICANTE: https://www.gigabyte.com/ar/Motherboard/Z590-AORUS-PRO-AX-rev-10#kf
