CPU

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors*

CHIPSET

• AMD X570

MEMORIA

• 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.

GRÁFICOS

• Integrated Graphics in AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors
• VGA output support : HDMI port
• Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz

SOPORTE MULTI GPU

• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series/ Desktop Processors
• Supports AMD 2-Way CrossFireX™ Technology

SLOTS DE EXPANSIÓN

• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• 1 x PCIe 4.0 x16 (x16 mode)
• AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors
• 1 x PCIe 3.0 x16 (x16 mode)
• AMD RyzenTM 3000 G-Series / 2000 G-Series Processors
• 1 x PCIe 3.0 x16 (x8 mode)
• AMD X570 chipset
• 1 x PCIe 4.0 x16 (max at x4 mode)
• 3 x PCIe 4.0 x1

ALMACENAMIENTO

• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors:
• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
• AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors:
• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
• AMD X570 chipset:
• 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• 6 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 10

LAN

• Realtek® RTL8111H
• ASUS LAN Guard

AUDIO

• Realtek S1200A 8-Channel High Definition Audio CODEC *
• Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• Front panel audio connector (AAFP)
• Audio Feature:
• Audio Shielding
• Dedicated audio PCB layers
• Premium Japanese-made audio capacitors

PUERTOS USB

• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors:
• 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *)
• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors:
• 2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A)
• AMD X570 chipset:
• 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A)
• AMD X570 chipset:
• 4 x USB 3.2 Gen 1 port(s) (4 at mid-board)
• AMD X570 chipset:
• 5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board)

CARACTERISTICAS ESPECIALES

• ASUS 5X Protection III:
• ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
• ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
• ASUS Overvoltage Protection: World-class circuit-protecting power design
• ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
• ASUS DIGI+ VRM - Digital power design with Dr. MOS
• ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
• ASUS ESD Guards - Enhanced ESD protection
• ASUS SafeSlot:
• Protect your graphics card Investment
• ASUS OptiMem:
• Improved DDR4 Stability
• ASUS EPU:
• EPU
• AURA:
• Aura RGB Strip Headers
• Aura Control
• Addressable Gen 2 Header
• ASUS Exclusive Features:
• AI Suite 3
• Ai Charger
• Armoury Crate
• ASUS Quiet Thermal Solution:
• Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink
• ASUS Fan Xpert 4
• ASUS EZ DIY:
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS Q-Design:
• ASUS Q-Slot
• ASUS Q-DIMM

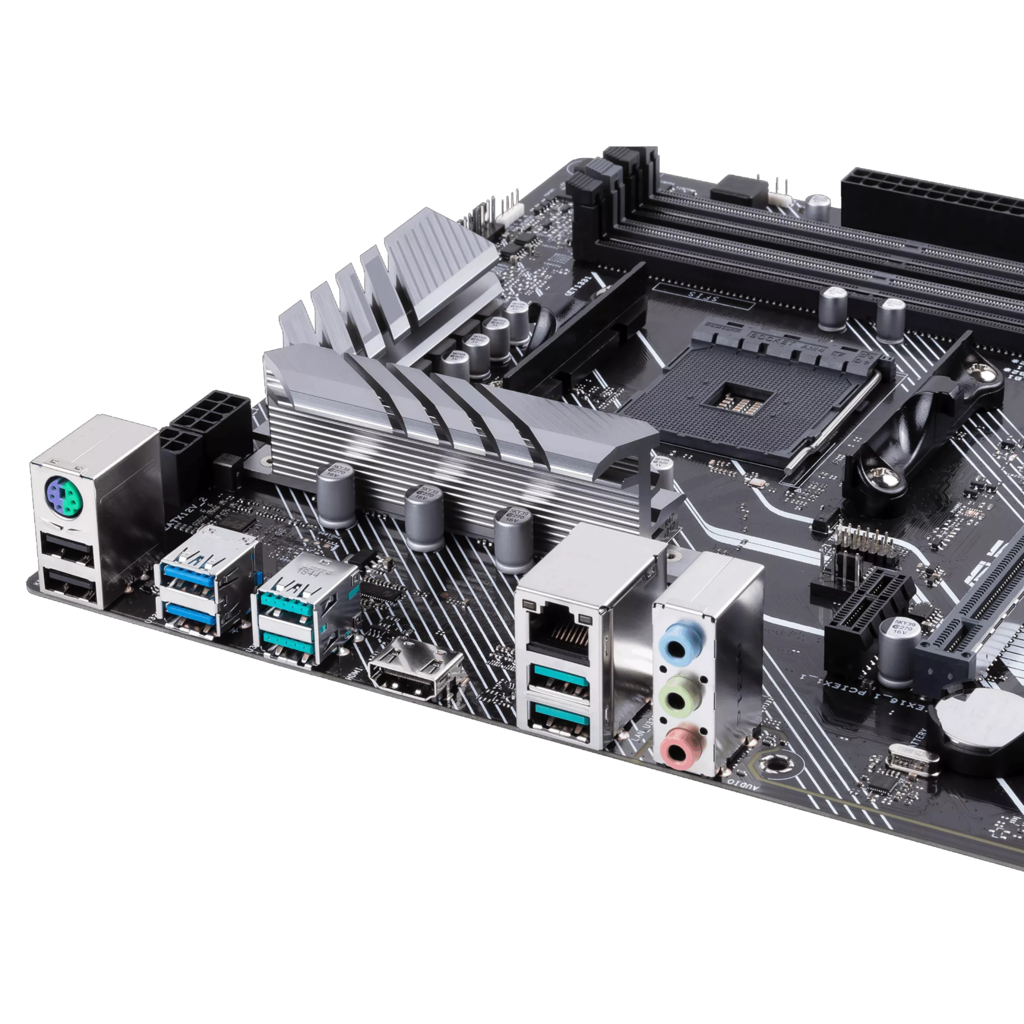

PUERTOS I/O TRASEROS

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 2.0
• 3 x Audio jack(s)
• 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
• 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)

INTERNAL I/O

• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 3 x Chassis Fan connector(s) (3 x 4 -pin)
• 1 x PCH_FAN (1 x 4 -pin)
• 1 x AIO_PUMP connector (1 x 4 -pin)
• 2 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 header(s)
• 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1 x SPI TPM header
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports

ACCESSORIOS

• User´s manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x Supporting DVD
• 1 x Extension cable for Addressable LED

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

CAPACIDAD DE GESTIÓN

• WOL by PME, PXE

SISTEMA OPERATIVO

• Windows® 10 64-bit

FACTOR DE FORMA

• ATX Form Factor
• 12.0  inch x 9.6  inch ( 30.5  cm x 24.4  cm )
