• PROCESADOR
  1. AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors

• CHIPSET
  1. AMD A520

• MEMORIA
  1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  2. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
     * ECC memory (ECC mode) support varies by CPU
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

• GRÁFICOS INTEGRADOS

Integrated Graphics Processor:

1. 1 x D-Sub port, supporting a maximum resolution of [email protected] Hz
2. 1 x DVI-D port, supporting a maximum resolution of [email protected] Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of [email protected] Hz
   * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 16 GB

• AUDIO
  1. Realtek Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel

• LAN
  1. Realtek GbE LAN chip (1000 Mbit/100 Mbit)

• PUERTOS DE EXPANSIÓN

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

2. 2 x PCI Express x1 slots, supporting PCIe 3.0

• INTERFAZ DE ALMACENAMIENTO

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:

2. 4 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, and RAID 10

• USB

CPU:

1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

2. 2 x USB 3.2 Gen 1 ports available through the internal USB header
3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• CONECTORES INTERNOS DE E/S
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 1 x M.2 Socket 3 connector
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  14. 1 x serial port header
  15. 1 x speaker header
  16. 1 x chassis intrusion header
  17. 1 x Clear CMOS jumper

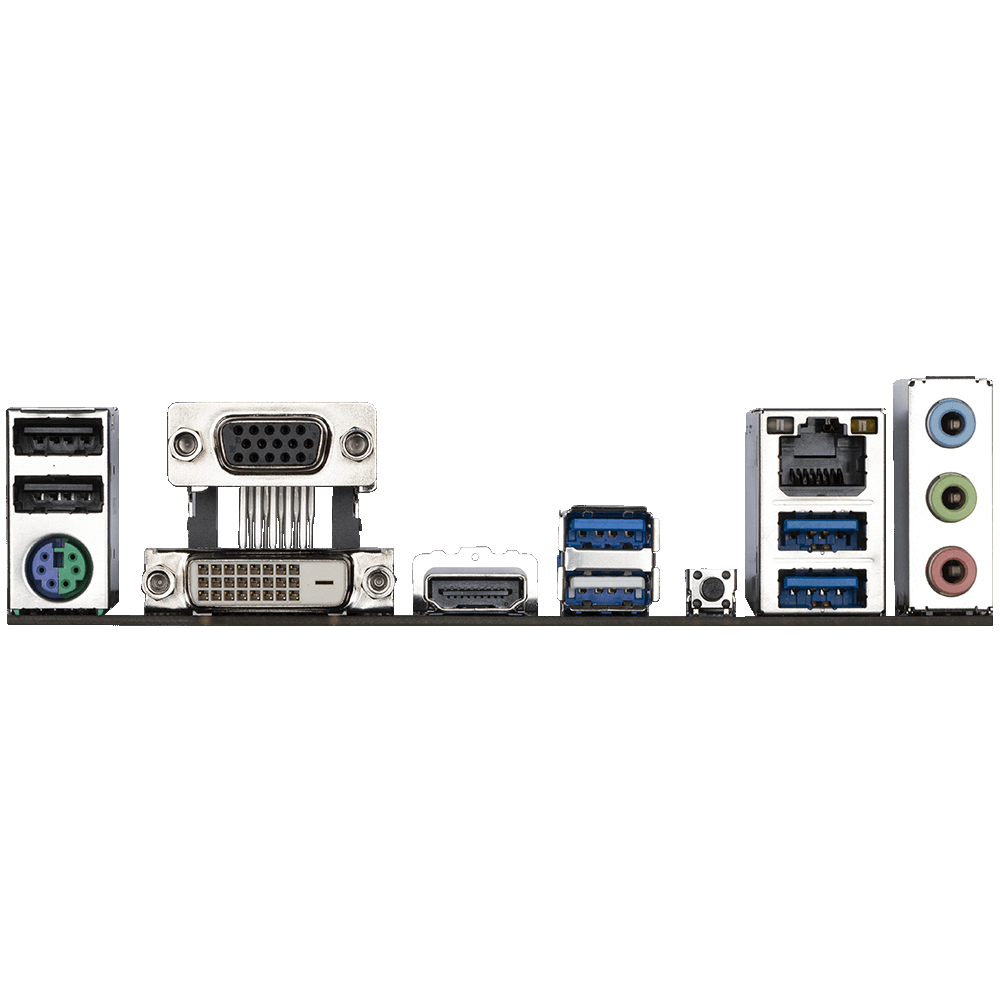

• CONECTORES DEL PANEL TRASERO
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 4 x USB 3.2 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 1 x Q-Flash Plus button
  9. 3 x audio jacks

• CONTROLADOR DE E/S
  1. iTE I/O Controller Chip

• MONITORIZACIÓN H/W
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control

• BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• CARACTERÍSTICAS ÚNICAS
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install

• SISTEMA OPERATIVO
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit

• DISEÑO
  1. Micro ATX Form Factor; 24.4cm x 20.5cm

WEB DEL FABRICANTE: https://www.gigabyte.com/ar/Motherboard/A520M-S2H-rev-1x#kf
